Back Up Rings

Anti Extrusion Back Up Rings


You can download the pdf below


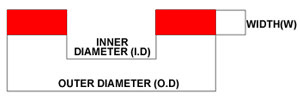

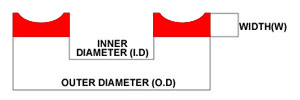

Backup rings prevent extrusion of "O" Rings In high pressures usually above 1500 PSI & compensate for loose fitting components.

One backup ringshould be used on each side of the "O" Ring in double acting assemblies if possible two backups should be used even in single acting assemblies.

If only one backup ring is used, the "O" Ring should be placed between the pressure source & the backup ring.

Contact us for more information on backup rings.

CONSTRUCTION MATERIALS


nti Extrusion Back Up Rings are Manufactured from over 15 different Polymers which include. Nitrile (NBR), Fluorocarbon (Viton®), Silicon (VMQ), Fluorosilicone (FVMQ), Polyurethane, PTFE , Natural Rubber (NR), Ethylene Propylene (EPDM), Hydrogenated Nitrile Rubber (H-NBR), Carboxylated Nitrile Rubber(X-NBR), Styrene Butadiene Rubber (SBR), Perfluoroelastomer (FFKM), Chloroprene (Neoprene®).
